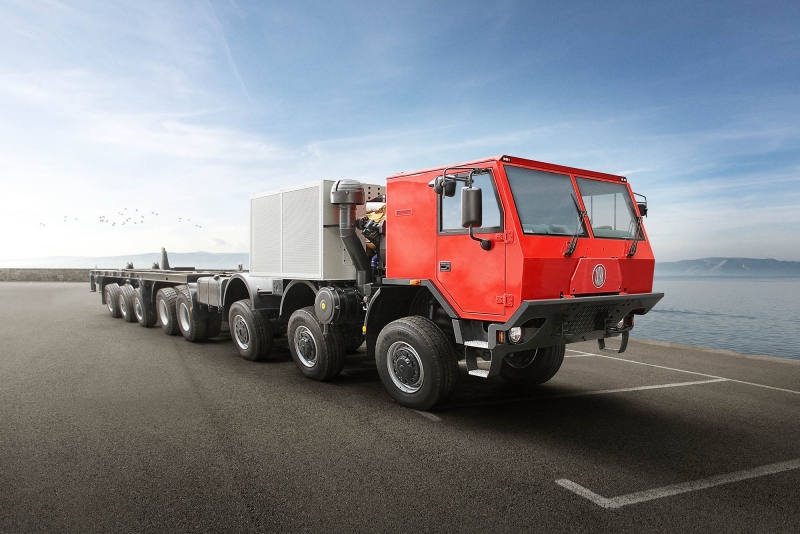

16x8 PODVOZKY PRO NÁSTAVBY (VRTNÉ, SERVISNÍ, ZÁSOBOVACÍ)

marking of the vehicle depends on its configuration

  • TATRA unique chassis design
  • modular configuration, up to 8 axles
  • max. load up to 16 tons per axle
  • powertrain tailored upon customers' requests
Engine Upon customers' request, according to specifications of the emission level, power requests and way of use of the vehicle. Available engines: TATRA (air cooled), CUMMINS, CAT, DEUTZ (air cooled)
Gear box Depends on the choice of the engine, way of use of the vehicle and requests on the PTO's. Available gear boxes: TATRA, Allison, Twin Disc.
Cab Model line TATRA FORCE, crew up to 1+3, ROPS crew protection integrated to the roof of the cab.
Wheelbase Depends on configuration of the vehicle.
GVW Depends on configuration of the vehicle. Max. load per axle: driven and steered 9 000 kg, not-driven and steered 10 000 kg,driven/not-driven and not-steered up to 16 000 kg whene air-suspension and leaf springs are combined
Max. speed Depends on configuration of the vehicle.
Superstructures Upon customers' requests. TATRA chassis protects the superstructure against twisting and bending forces perfectly. The superstructure can be assebled to TATRA chassis very easy and fast. Examples of superstructures for this kind of chassis: fladbad with crain, container carrier, tank, drilling platforms, cement application units etc.
